Envoy：TLS双向认证

环境准备

主机	角色	数量
front-envoy	front envoy	1
service envoy	作为内部后端的envoy	2
end	后端应用程序	2

访问 / front-envoy ==> end * 2 访问 /red/colorful ==> end red 不验证客户端证书单项tls 访问 /gray/colorful ==> end gray 验证客户端证书双项tls

docker-compose

text

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
version: '3'
services:
  front-envoy:
    image: envoyproxy/envoy-alpine:v1.15-latest
    environment:
    - ENVOY_UID=0
    ports:
    - 80:80
    - 443:443
    - 82:9901
    volumes:
    - ./envoy.yaml:/etc/envoy/envoy.yaml
    - ./certs/front-envoy/:/etc/envoy/certs/
    - ./certs/CA/:/etc/envoy/ca/
    networks:
      envoymesh:
        aliases:
        - front-envoy
    depends_on:
    - webserver1
    - webserver2

  gray-envoy:
    image: envoyproxy/envoy-alpine:v1.15-latest
    environment:
    - ENVOY_UID=0
    volumes:
    - ./service_gray.yaml:/etc/envoy/envoy.yaml
    - ./certs/service_gray/:/etc/envoy/certs/
    - ./certs/CA1/:/etc/envoy/ca/
    network_mode: "service:webserver1"
    depends_on:
    - webserver1

  red-envoy:
    image: envoyproxy/envoy-alpine:v1.15-latest
    environment:
    - ENVOY_UID=0
    volumes:
    - ./service_red.yaml:/etc/envoy/envoy.yaml
    - ./certs/service_red/:/etc/envoy/certs/
    - ./certs/CA1/:/etc/envoy/ca/
    network_mode: "service:webserver2"
    depends_on:
    - webserver2


  webserver1:
    image: cylonchau/envoy-end:latest
    networks:
      envoymesh:
        aliases:
        - service_gray
        - front_envoy
    environment:
    - VERSION=v1
    - COLORFUL=gray
    expose:
    - 90
  webserver2:
    image: cylonchau/envoy-end:latest
    networks:
      envoymesh:
        aliases:
        - service_red
        - front_envoy
    environment:
    - VERSION=v1
    - COLORFUL=red
    expose:
    - 90

networks:
  envoymesh: {}

front-envoy

text

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
admin:
  access_log_path: "/dev/null"
  address:
    socket_address:
      address: 0.0.0.0
      port_value: 9901

static_resources:
  secrets:
  - name: servers
    tls_certificate:
      certificate_chain:
        filename: "/etc/envoy/certs/server.crt"
      private_key:
        filename: "/etc/envoy/certs/server.key"
  - name: clients
    tls_certificate:
      certificate_chain:
        filename: "/etc/envoy/certs/client.crt"
      private_key:
        filename: "/etc/envoy/certs/client.key"
  - name: validation
    validation_context:
      trusted_ca:
        filename: "/etc/envoy/ca/ca.crt"

  listeners:
  - name: listener_http
    address:
      socket_address: { address: 0.0.0.0, port_value: 80 }
    filter_chains:
    - filters:
      - name: envoy.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          codec_type: auto
          stat_prefix: ingress_http
          route_config:
            name: local_route
            virtual_hosts:
            - name: service
              domains: [ "*" ]
              routes:
              - match: { prefix: "/" }
                redirect:
                  https_redirect: true
                  port_redirect: 443
          http_filters:
          - name: envoy.router

  - name: listener_https
    address:
      socket_address: { address: 0.0.0.0, port_value: 443 }
    filter_chains:
    - filters:
      - name: envoy.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: ingress_https
          codec_type: AUTO
          route_config:
            name: https_route
            virtual_hosts:
            - name: https_route
              domains: ["*"]
              routes:
              - match: { prefix: "/gray/colorful" }
                route:
                  prefix_rewrite: "/colorful"
                  cluster: gray
              - match: { prefix: "/red/colorful" }
                route:
                  prefix_rewrite: "/colorful"
                  cluster: red
              - match: { prefix: "/" }
                route:
                  cluster: front_envoy
          http_filters:
          - name: envoy.router
          access_log:
          - name: envoy.listener.accesslog
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog
              path: /dev/stdout
              log_format:
                text_format: "[%START_TIME%] \"%REQ(:METHOD)% %REQ(X-ENVOY-ORIGINAL-PATH?:PATH)% %PROTOCOL%\" %RESPONSE_CODE% %RESPONSE_FLAGS% %BYTES_RECEIVED% %BYTES_SENT% %DURATION% %RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)% \"%REQ(X-FORWARDED-FOR)%\" \"%REQ(USER-AGENT)%\" \"%REQ(X-REQUEST-ID)%\" \"%REQ(:AUTHORITY)%\" \"%UPSTREAM_HOST%\"\n"
      transport_socket:
        name: envoy.transport_sockets.tls
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.DownstreamTlsContext
          common_tls_context:
            tls_certificate_sds_secret_configs:
            - name: servers

  clusters:
  - name: front_envoy
    connect_timeout: 0.25s
    type: strict_dns
    lb_policy: round_robin
    load_assignment:
      cluster_name: front_envoy
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: { address: front_envoy, port_value: 90 }

  - name: gray
    connect_timeout: 0.25s
    type: strict_dns
    lb_policy: round_robin
    load_assignment:
      cluster_name: gray
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: { address: service_gray, port_value: 443 }
    transport_socket:
      name: envoy.transport_sockets.tls
      typed_config:
        "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
        common_tls_context:
          tls_certificate_sds_secret_configs:
          - name: clients
          validation_context_sds_secret_config:
            name: validation

  - name: red
    connect_timeout: 0.25s
    type: strict_dns
    lb_policy: round_robin
    load_assignment:
      cluster_name: red
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: { address: service_red, port_value: 443 }
    transport_socket:
      name: envoy.transport_sockets.tls
      typed_config:
        "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
        common_tls_context:
          tls_certificate_sds_secret_configs:
          - name: clients

service gray

text

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
admin:
  access_log_path: "/dev/null"
  address:
    socket_address:
      address: 0.0.0.0
      port_value: 9901

static_resources:
  listeners:
  - name: listener_https
    address:
      socket_address: { address: 0.0.0.0, port_value: 443 }
    filter_chains:
    - filters:
      - name: envoy.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: ingress_https
          codec_type: AUTO
          route_config:
            name: https_route
            virtual_hosts:
            - name: https_route
              domains: ["*"]
              routes:
              - match: { prefix: "/" }
                route:
                  cluster: service_gray
          http_filters:
          - name: envoy.router
          access_log:
          - name: envoy.listener.accesslog
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog
              path: /dev/stdout
              log_format:
                text_format: "[%START_TIME%] \"%REQ(:METHOD)% %REQ(X-ENVOY-ORIGINAL-PATH?:PATH)% %PROTOCOL%\" %RESPONSE_CODE% %RESPONSE_FLAGS% %BYTES_RECEIVED% %BYTES_SENT% %DURATION% %RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)% \"%REQ(X-FORWARDED-FOR)%\" \"%REQ(USER-AGENT)%\" \"%REQ(X-REQUEST-ID)%\" \"%REQ(:AUTHORITY)%\" \"%UPSTREAM_HOST%\"\n"
      transport_socket:
        name: envoy.transport_sockets.tls
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.DownstreamTlsContext
          common_tls_context:
            tls_certificates:
              certificate_chain:
                filename: "/etc/envoy/certs/server.crt"
              private_key:
                filename: "/etc/envoy/certs/server.key"
            validation_context:
              trusted_ca:
                filename: "/etc/envoy/ca/ca.crt"
          require_client_certificate: true


  clusters:
  - name: service_gray
    connect_timeout: 0.25s
    type: strict_dns
    lb_policy: round_robin
    load_assignment:
      cluster_name: service_gray
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: { address: 127.0.0.1, port_value: 90 }

service red

text

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
admin:
  access_log_path: "/dev/null"
  address:
    socket_address:
      address: 0.0.0.0
      port_value: 9901

static_resources:
  listeners:
  - name: listener_https
    address:
      socket_address: { address: 0.0.0.0, port_value: 443 }
    filter_chains:
    - filters:
      - name: envoy.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          stat_prefix: ingress_https
          codec_type: AUTO
          route_config:
            name: https_route
            virtual_hosts:
            - name: https_route
              domains: ["*"]
              routes:
              - match: { prefix: "/" }
                route:
                  cluster: service_red
          http_filters:
          - name: envoy.router
          access_log:
          - name: envoy.listener.accesslog
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.access_loggers.file.v3.FileAccessLog
              path: /dev/stdout
              log_format:
                text_format: "[%START_TIME%] \"%REQ(:METHOD)% %REQ(X-ENVOY-ORIGINAL-PATH?:PATH)% %PROTOCOL%\" %RESPONSE_CODE% %RESPONSE_FLAGS% %BYTES_RECEIVED% %BYTES_SENT% %DURATION% %RESP(X-ENVOY-UPSTREAM-SERVICE-TIME)% \"%REQ(X-FORWARDED-FOR)%\" \"%REQ(USER-AGENT)%\" \"%REQ(X-REQUEST-ID)%\" \"%REQ(:AUTHORITY)%\" \"%UPSTREAM_HOST%\"\n"
      transport_socket:
        name: envoy.transport_sockets.tls
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.DownstreamTlsContext
          common_tls_context:
            tls_certificates:
            - certificate_chain:
                filename: "/etc/envoy/certs/server.crt"
              private_key:
                filename: "/etc/envoy/certs/server.key"

  clusters:
  - name: service_red
    connect_timeout: 0.25s
    type: strict_dns
    lb_policy: round_robin
    load_assignment:
      cluster_name: service_red
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address: { address: 127.0.0.1, port_value: 90 }

配置说明

docker-compose

network_mode: "service:webserver1" 指定网络类型，使envoy和后端程序运行在一个网络下

text

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
  secrets:
  - name: servers
    tls_certificate:
      certificate_chain:
        filename: "/etc/envoy/certs/server.crt"
      private_key:
        filename: "/etc/envoy/certs/server.key"
  - name: clients
    tls_certificate:
      certificate_chain:
        filename: "/etc/envoy/certs/client.crt"
      private_key:
        filename: "/etc/envoy/certs/client.key"
  - name: validation
    validation_context:
      trusted_ca:
        filename: "/etc/envoy/ca/ca.crt"

server

text

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
      transport_socket:
        name: envoy.transport_sockets.tls
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.DownstreamTlsContext
          common_tls_context:
            tls_certificates:
              certificate_chain:
                filename: "/etc/envoy/certs/server.crt"
              private_key:
                filename: "/etc/envoy/certs/server.key"
            validation_context:    # 验证机制的相关配置
              trusted_ca: # 信任的ca证书，未指定时不会验证对端证书
                filename: "/etc/envoy/ca/ca.crt"   # 这里指定的为根ca
          require_client_certificate: true # boolval 设置为ture,Envoy将拒绝没有有效客户端证书的连接。

验证结果

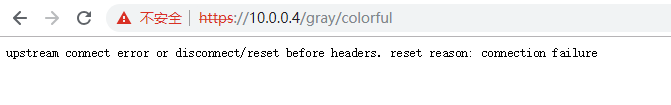

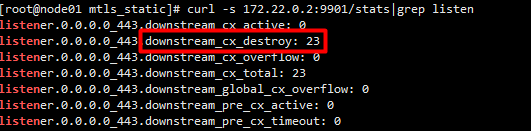

/gray/colorful后端服务开启了验证客户端ca，访问报错，后端程序并没收到请求，因证书无效，envoy销毁了请求

将根ca设置为可信任后

/red/colorful 没开启验证客户端证书

环境准备#

docker-compose#

front-envoy#

service gray#

service red#

配置说明#

验证结果#

相关阅读

环境准备

docker-compose

front-envoy

service gray

service red

配置说明

验证结果
